ThinkPad Thunderbolt 3 Workstation Dock Gen 2 - US. Includes 135W AC adapter
This Intel® Thunderbolt™ Chipset powered Thunderbolt Dock Gen 2 (40AN) aimed to boost productivity with extended compatibility on both USB-C and Thunderbolt enabled laptop.
Features include:
- Upgraded compatibility: Quick access to high-speed data transfer, UHD display, and 65W power to both Thunderbolt™ and USB-C notebooks.
- Extreme performance: The Intel® Thunderbolt™ 3 Chipset offerslarge data transfers at 40 Gbps, and run up to three 4K UHD displays
- Enterprise-friendly: Supports network manageability such as PXE boot, system Wake-On LAN from a variety of modes, and MAC address pass-through with ThinkPad® notebooks.
What's Included?
(1) 03X7538 / DK1841 / SD20M70247 - ThinkPad Thunderbolt 3 Gen 2 Workstation Dock
(1) 01FR042 - 135W AC adapter (or compatible)
(1) 42T5008 - Power Cable for 135W AC adapter
(1) 03X7134 - USB-C Cable
Product Support - (external links to Lenovo website)
Knowledge Base and Guides
Driver for Windows 10 (64-bit)
Firmware for Windows 10 (64-bit)
Setup Poster
Display and Video Output Configurations

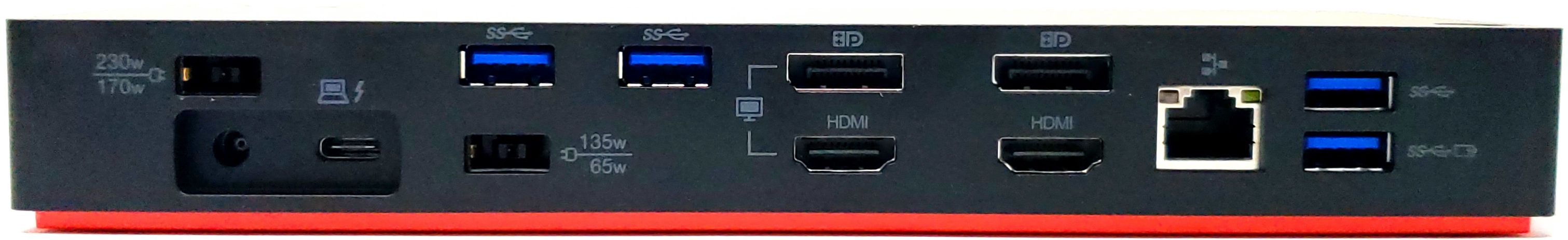

Ports and Security
- Two DisplayPort™ 1.4
- Two HDMI™ 2.0
- Thunderbolt™ 3 DownStream Port (video/data)
- Maximum Displays Support: Up to 4*
- Note: Mobile Workstation display plus three external displays or four external displays when Mobile Workstation display is closed. Max displays supported will vary based on PC graphics.
- USB Ports: 5 x USB 3.11 10 Gbps (1 x always-on charging)
- Audio: 3.5 mm Combo
- Networking: Gigabit Ethernet Port
- Security: Kensington® Lock Slot
Operating System Requirement
