HP USB-C Thunderbolt G2 230W Docking Station Dock Kit with Combo Cable and 230W AC Adapter
Dock Model Number: HSN-IX01, 2UK37AA#ABA
USB-C Combo Cable Part Numbers: L25667-001, L15938-001, L25667-002, L15938-002, 6017B0994401
230W AC Adapter Part Number: 609946-001, 693706-001 or alternate substitute. Adapter model will vary based on availability.
Power Cable for 230W AC Adapter: 142263-008
Works with: L15811-001 - HP Thunderbolt TB Dock Audio Module - sold separately.
Product Support (external links to HP)
User Guide from HP
Software and Drivers from HP
Firmware Page from HP
Front Ports:
1 USB-C™ port with data and power out (15W)
1 USB-C™ cable to connect to host system (0.7 meter cable length)

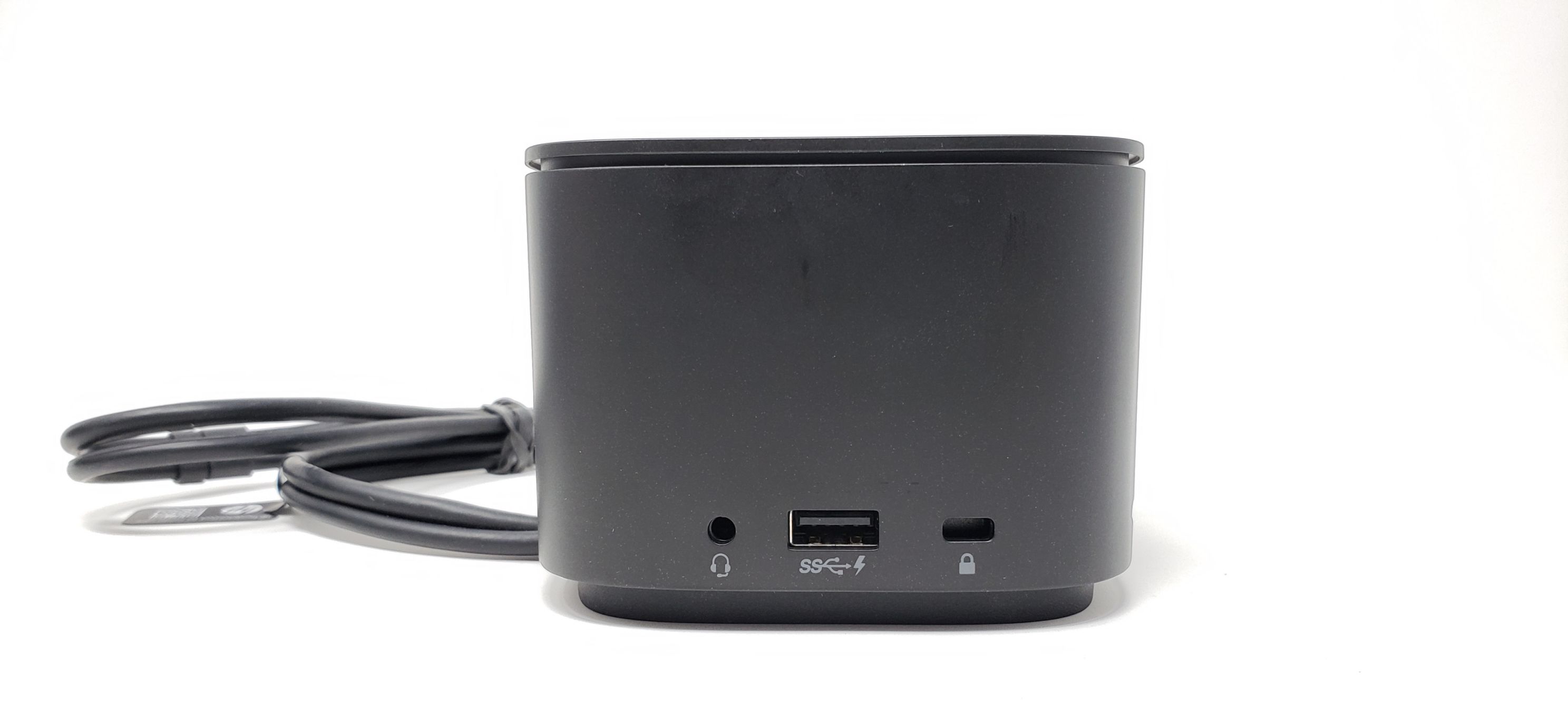

Side Ports:
1 powered USB 3.0 port
1 combo Audio Jack
1 Kensington lock slot

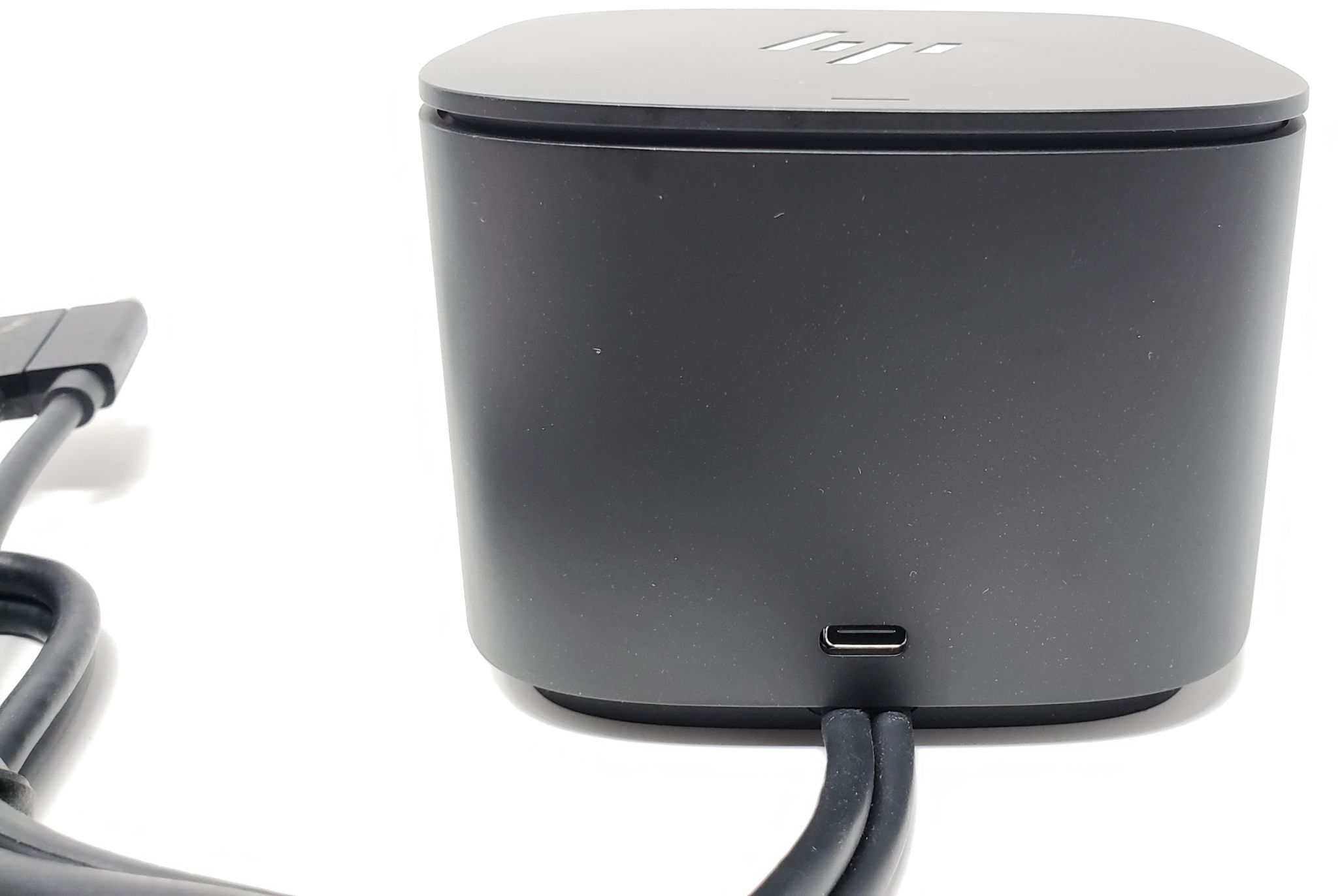

Back Ports:
1 Thunderbolt™ port
1 USB-C™ DisplayPort™ data and power out (15W) port
2 DisplayPort™ ports
1 VGA port
2 USB 3.0 ports
1 RJ45 port
1 AC Adapter connector
Compatible Models (but not limited to)
HP Elite x2 1012 G1
HP Elite x2 1012 G2
HP Pro x2 612 G2
HP EliteBook Folio G1
HP EliteBook x360 1030 G2
HP EliteBook x360 1020 G2
HP EliteBook 1040 G4
HP EliteBook 800 G5
HP EliteBook 700 G5
HP ProBook 600 G4
HP ProBook 400 G5
HP ZBook 14u G5
HP ZBook 15u G5
HP ZBook 17 G3
HP ZBook 15 G3
HP ZBook 17 G4
HP ZBook 15 G4
