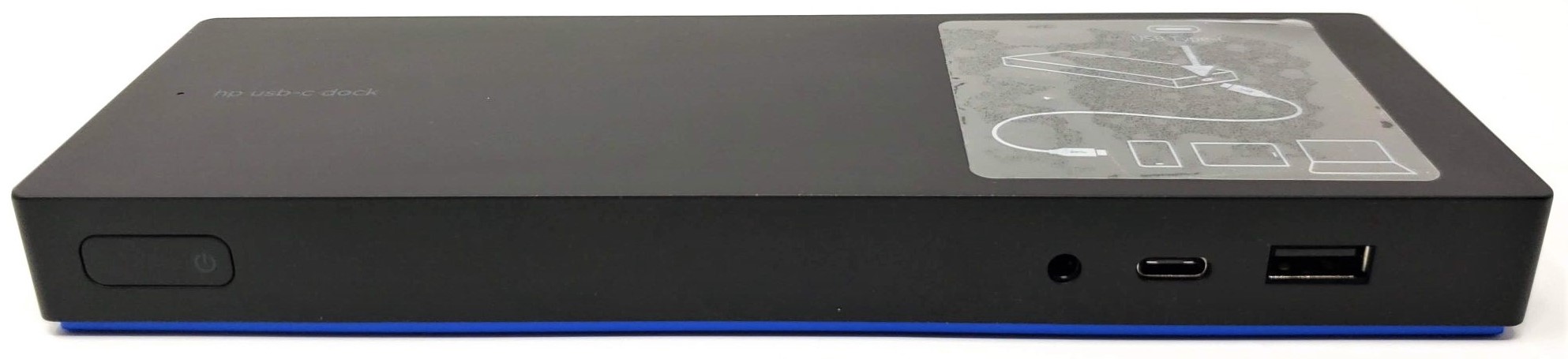

USB-C Dock G4 Docking Station with 90W Adapter Included 710413-001
HP USB-C Dock G4 complete kit.
What's Included?
(1) L13898-002 - HP G4 Docking Station
(1) 710413-001 - 90W Ac Adapter
(1) 213349-013 - 3-Prong Power Cable
(1) 930475-001 - USB-C to C Gen1 3A 1.0m Cable
Resources from HP
Customer Support / Knowledge Base
Software and Drivers Download
HP USB-C Dock G4 Data Sheet
User Guide
| Part Number | 3FF69AA |
| Dimensions | (H x W x D) 7.79 x 2.71 x 0.87in (198 x 69 x 22mm) |
| Weight | 0.769lbs (0.355kg) |
| Resolution | Single display: up to 3840 x 1440 @ 60Hz |
| Dual display: up to 1920x1200 @ 60Hz | |
| Triple display: up to 1680 x 1050 @ 60Hz | |
| Front Components | One USB 3.0 port |
| USB-CTM port with data and power out only | |
| Combo audio jack connects to headphone | |
| Power Button to power and wake host system3 | |
| Side / Rear Components | Smart AC adapter |
| One powered USB 3.0 port | |
| Two USB 2.0 ports | |
| Gigabit Ethernet port | |
| One HDMI 2.0 port | |
| Two DisplayPort ports | |
| One USB-CTM port connects to computers | |
| Kensington lock slot | |
| Normal Operating Power | 90W |
| Average Operation Power | 65W |
| Max Operating Power | 100W |
| Power Delivery (PD) Profile | USB-CTM PD 3.0 supporting 5V/3A, 9V/3A,10V/3A, 12V/3A, 15V/3A and 20V/3A |
| Operating Systems | Windows 10, Windows 10 mobile |
| Option Kit Contents | HP USB-C Dock G4, AC power cable, 90W A/C Adapter, USB-C (1m) cable |
