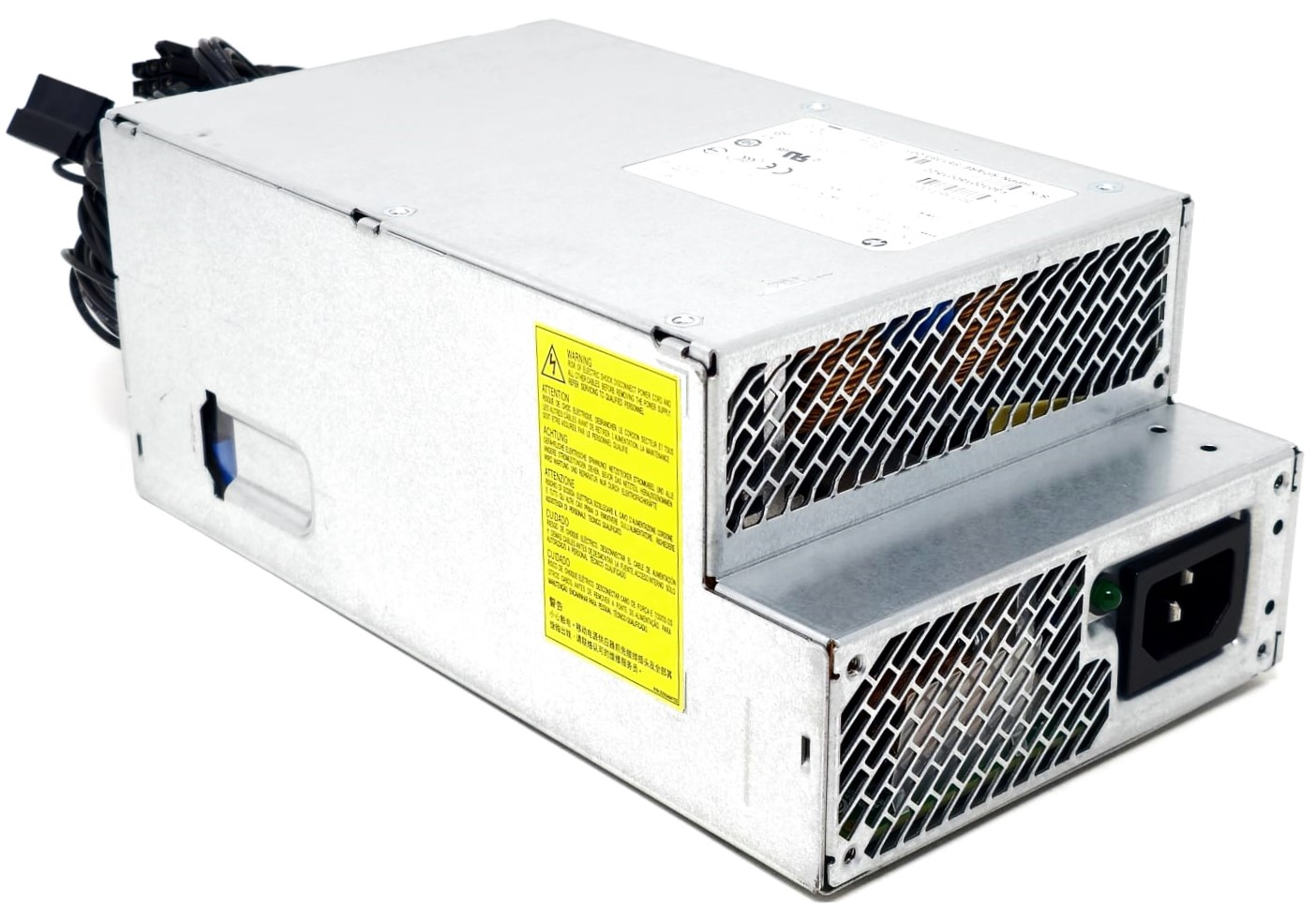

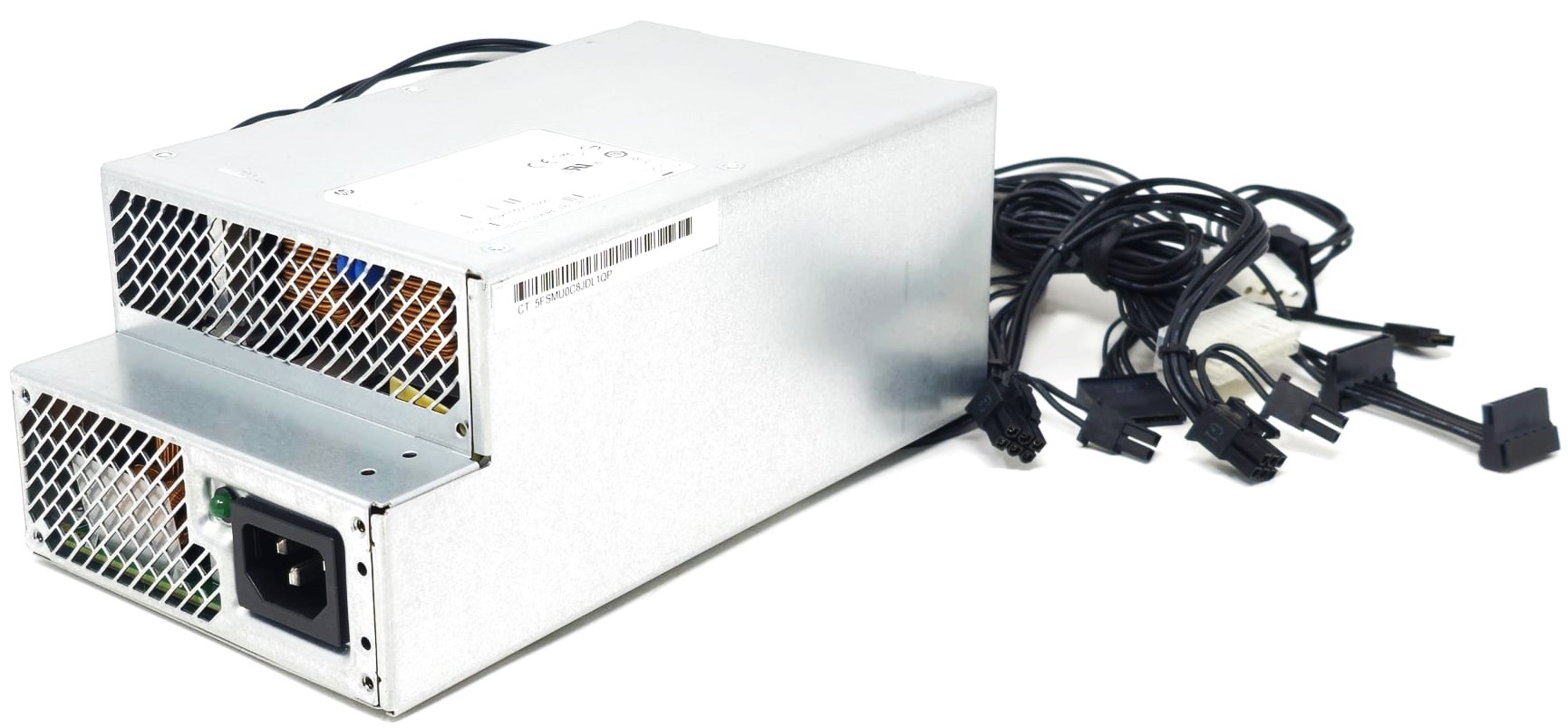

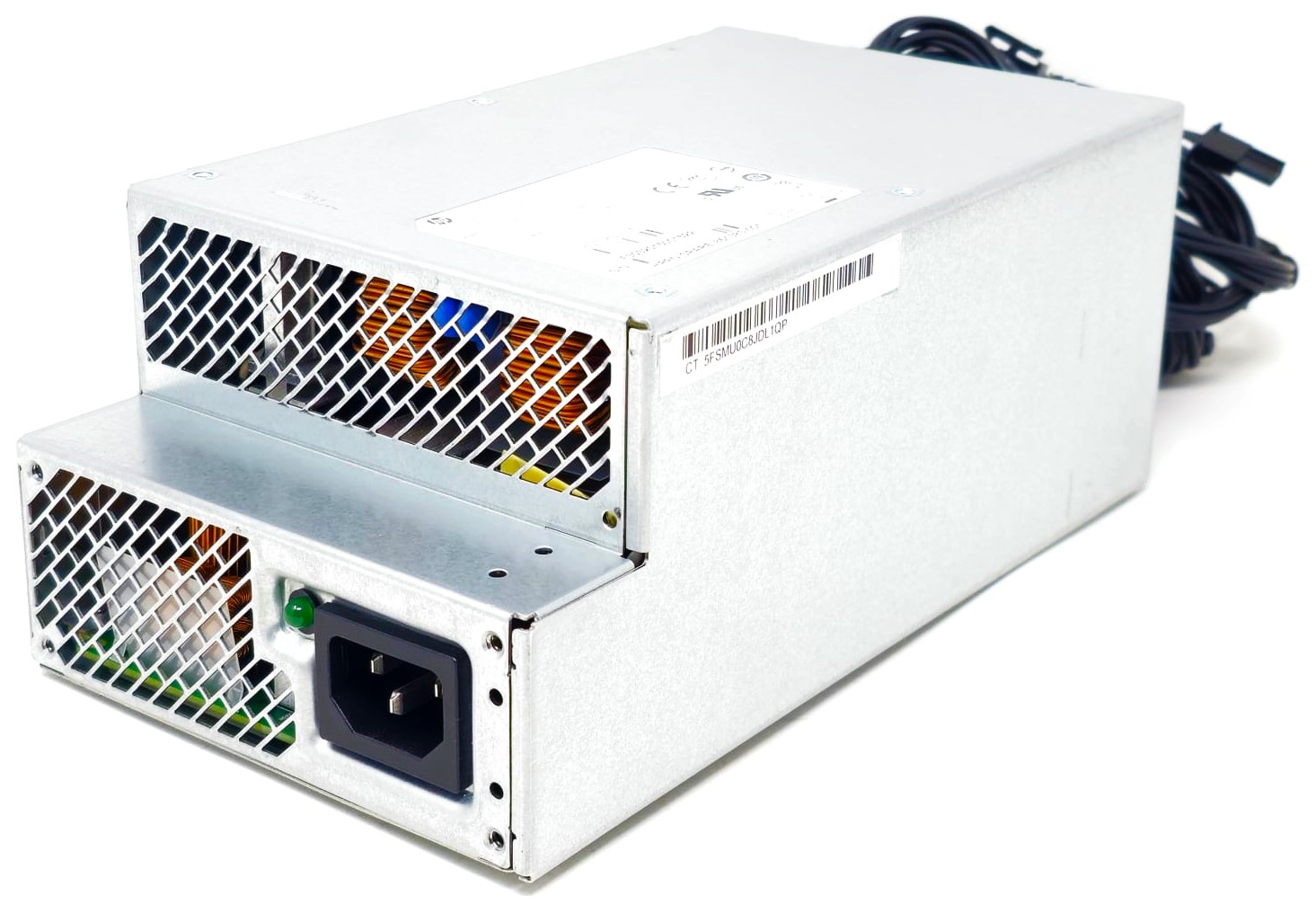

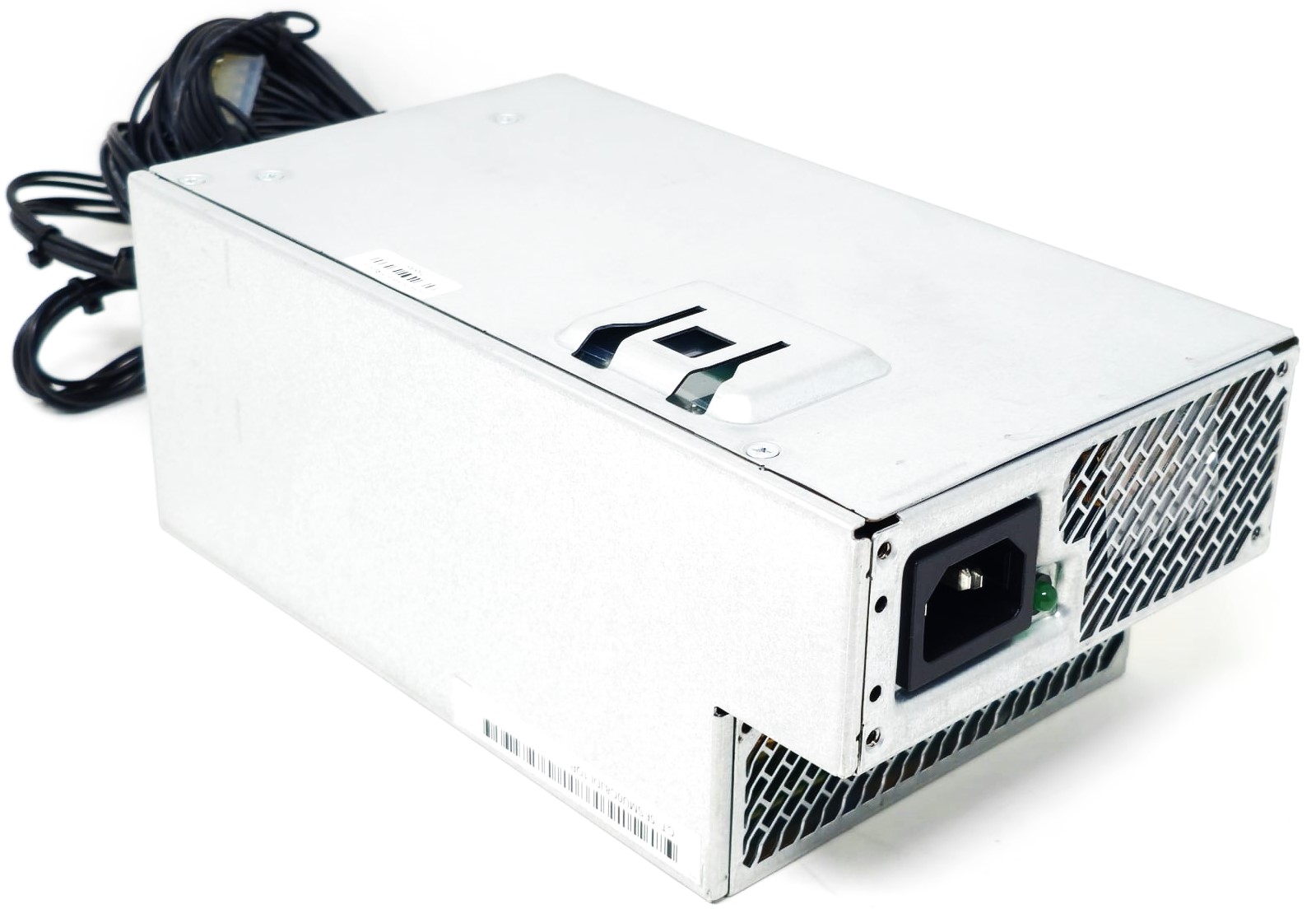

HP 851383-001 - 1000W Power Supply for HP WorkStation Z4 Z6 G4
MAX. OUTPUT POWER: 1000W
AC INPUT
100-127V~/ 12A 50/60Hz
200-240V~/ 6.3A 50-60Hz
118~/ 12A 400Hz
DC OUTPUT
V12-M0=/18A, V12-G2=/18A
V12-M1=/9A, V12-CPU0=/18A
V12-B=/18A, V12-CPU1=/18A
V12-D=/18A, V12-CPU2=/18A
V12-S=/18A, V12-CPU3=/18A
V12-G1=/18A, 5VSB=/6A
Dimensions
120mm x 86mm x 214mm

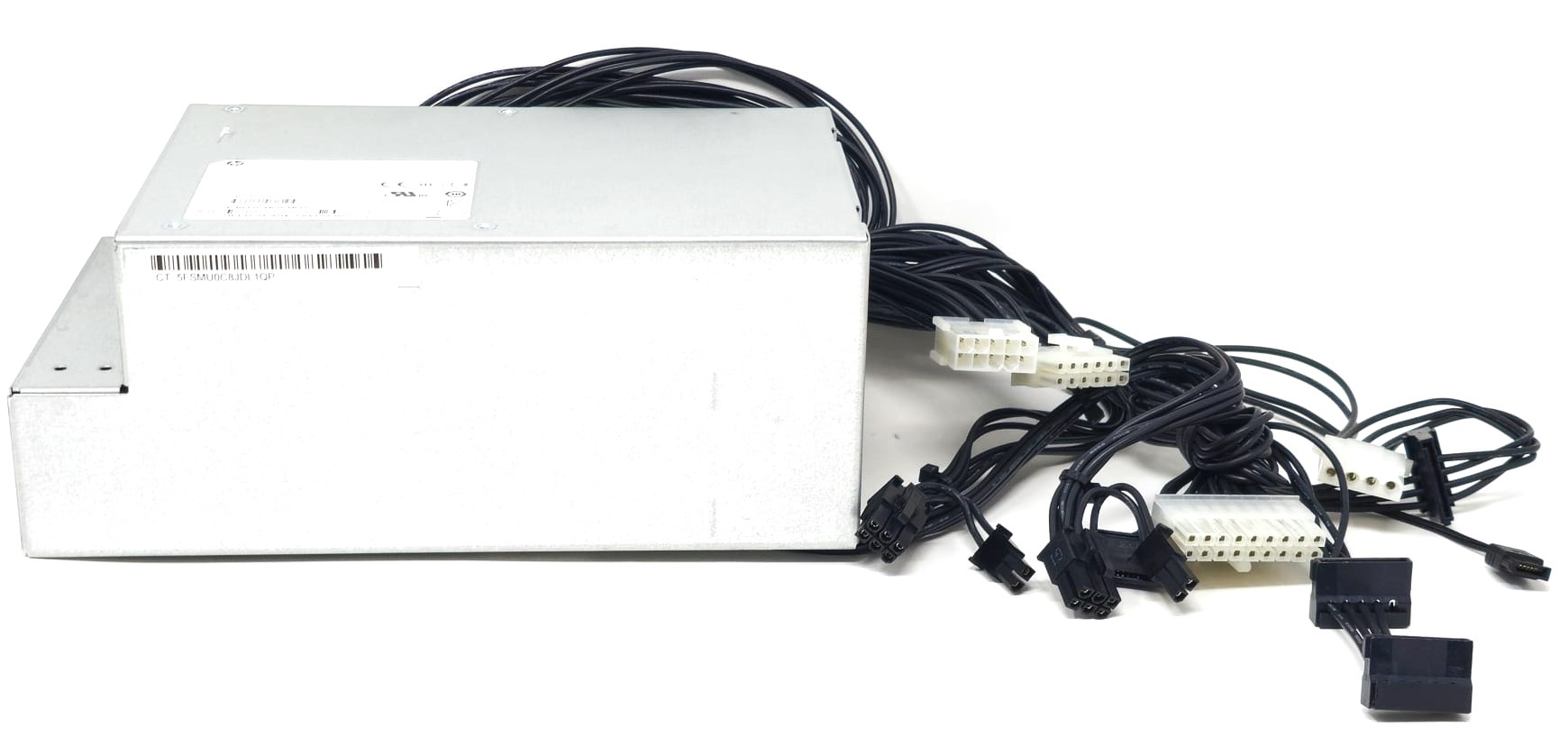

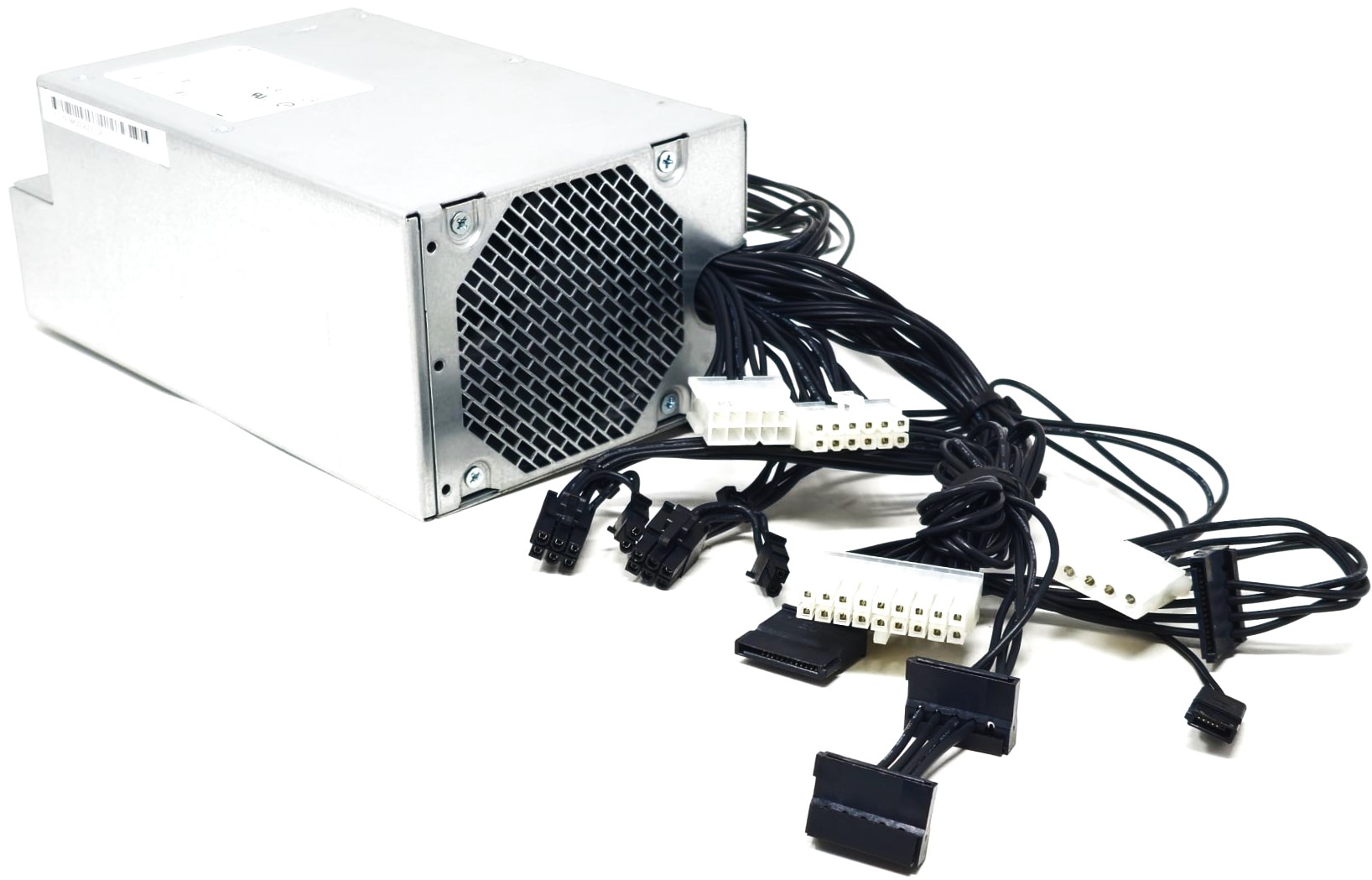

Connectors
(1) 18-Pin Connector (P1) 8.25")
(1) 12-Pin Connector (P2) (2.75")
(1) 12-Pin Connector Female (R1) (2.25")
(1) Ide Connector (D5) (9") Same Cable As Dual Sata / Mini Sata
(4) Sata Connector (D4 13.25") & (D3 17") On Same Cable As Mini Sata And Ide (D0 22") & (D1 24") On Same Cable
(2) 6+2 Pin Connector (G1 28") (G2 28")
