HP 404224-001 - Motherboard for HP DC7700 Desktop

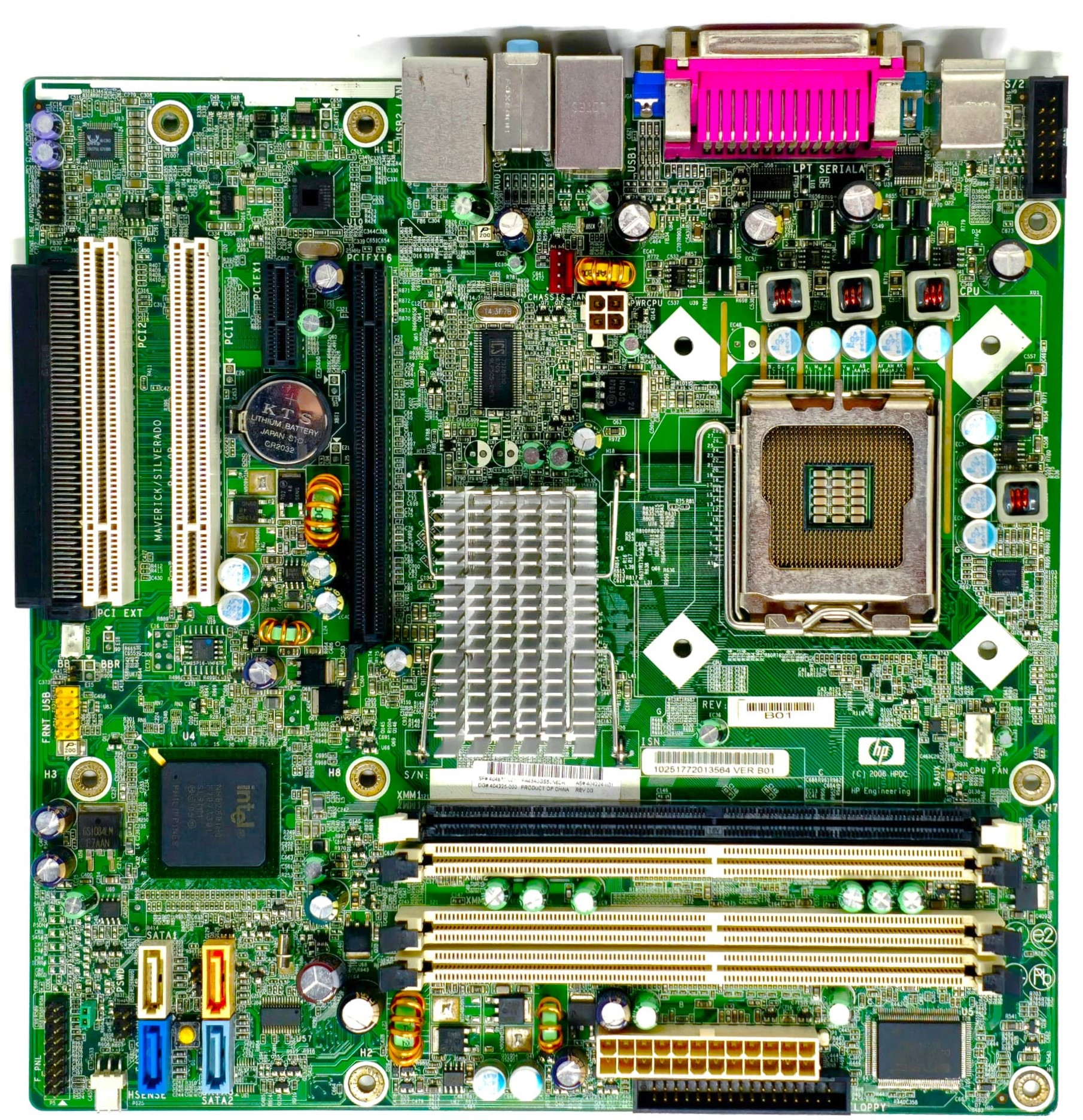

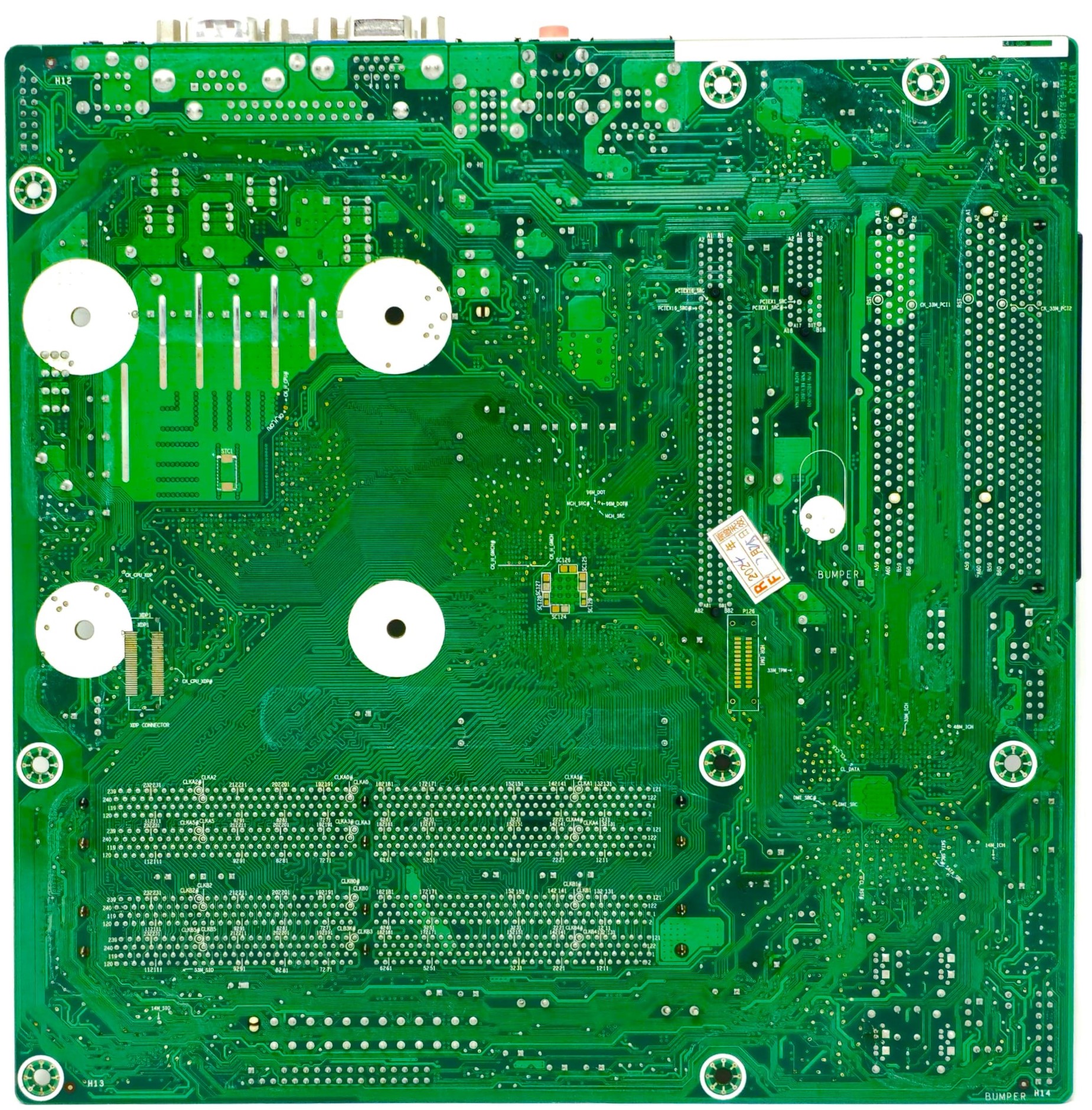

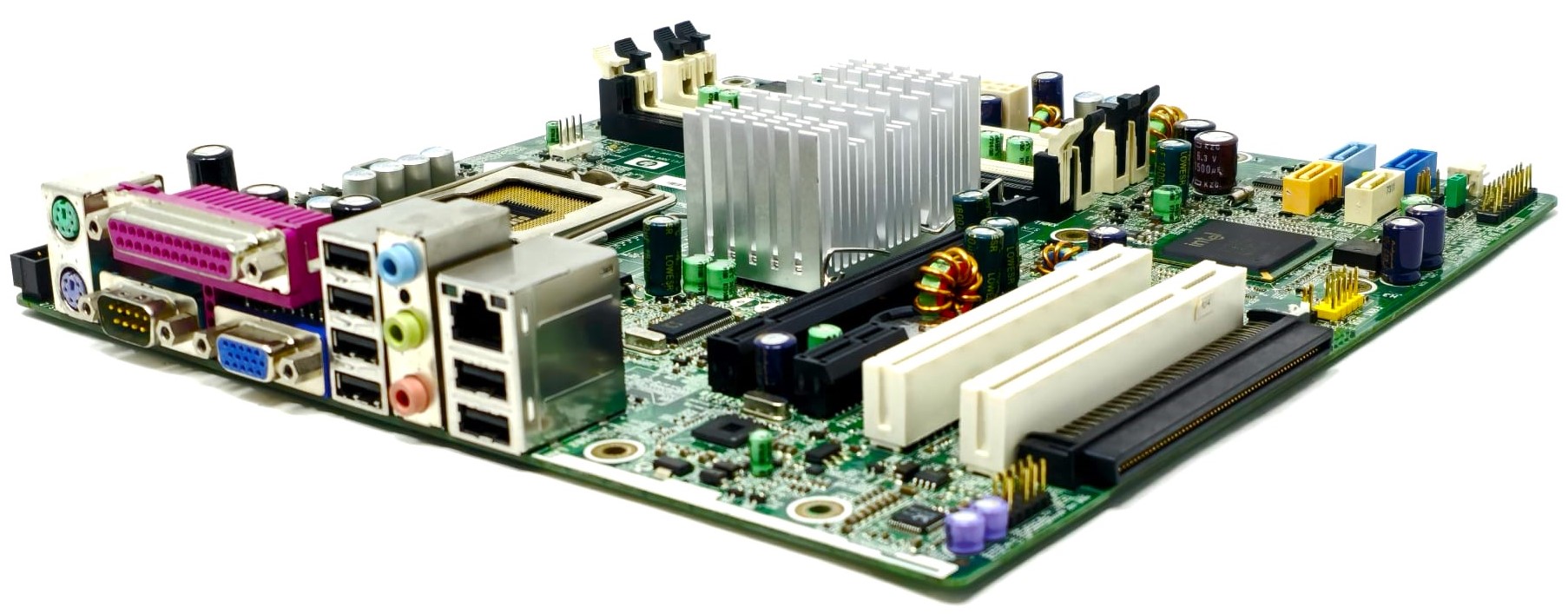

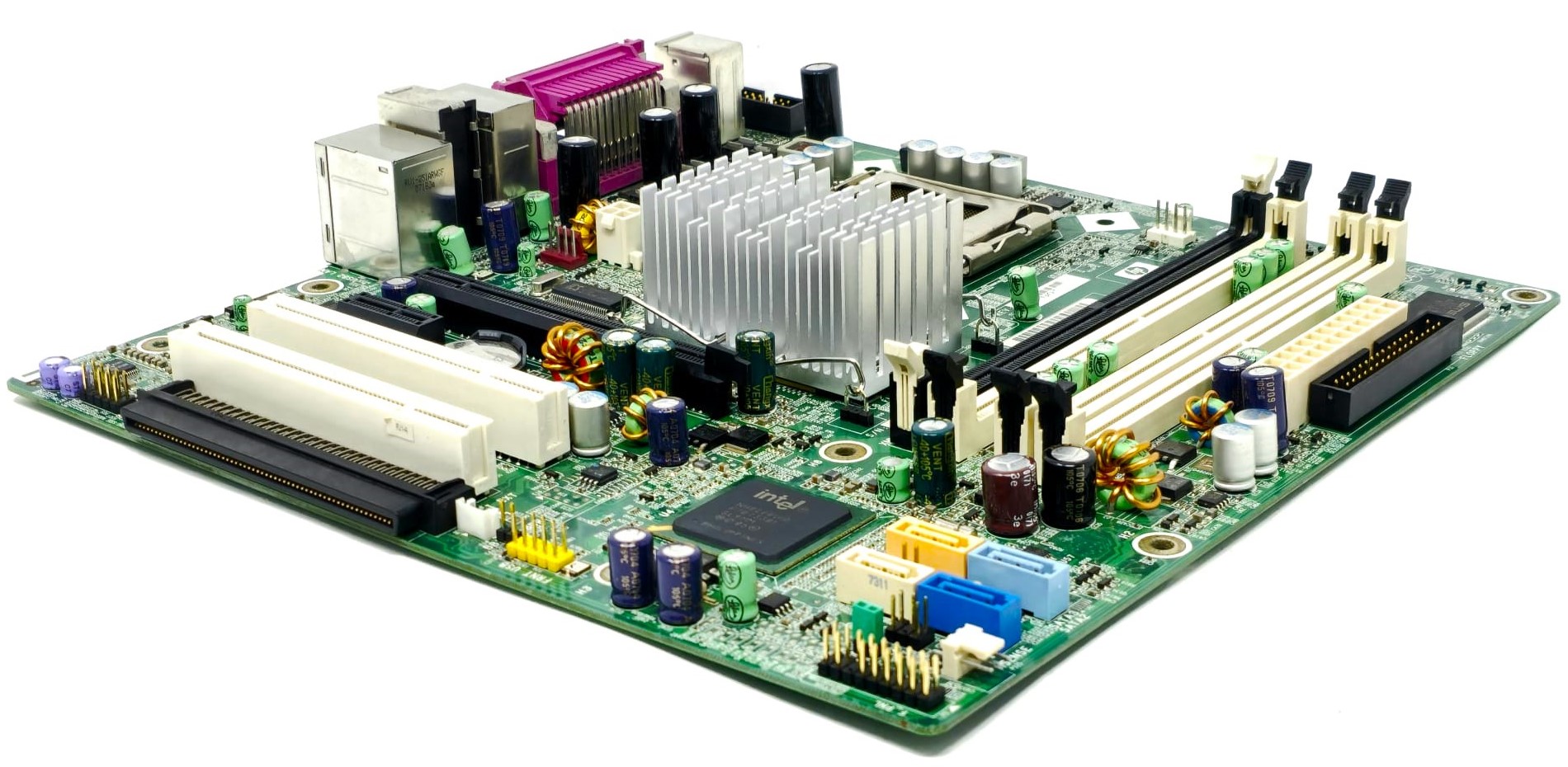

HP 404673-001 - Motherboard for HP DC7700 Desktop

• Model Name: HP 404673-001
• Compatible System: HP DC7700, HP DX7300 MT desktops
• Form Factor: Micro ATX

Chipset

• Chipset Manufacturer: Intel
• Chipset Model: Intel 945G

Socket

• Socket Type: LGA 775

Supported Processors

• Intel Core 2 Duo processors (including E6300, E6400, E6500, E6600, E6700, E6800)
• Intel Pentium D processors (including 920, 930, 940, 950)
• Intel Pentium 4 processors (including 630, 640, 650, 660)

Memory

• Memory Type: DDR2 SDRAM
• Number of Slots: 4
• Maximum Supported Memory: 8GB (4 x 2GB)
• Supported Memory Speeds: 400MHz, 533MHz, 667MHz

Expansion Slots

• 1 x PCI Express x16 slot
• 1 x PCI Express x1 slot
• 2 x PCI slots

Storage

• 4 x SATA 3.0 Gb/s connectors

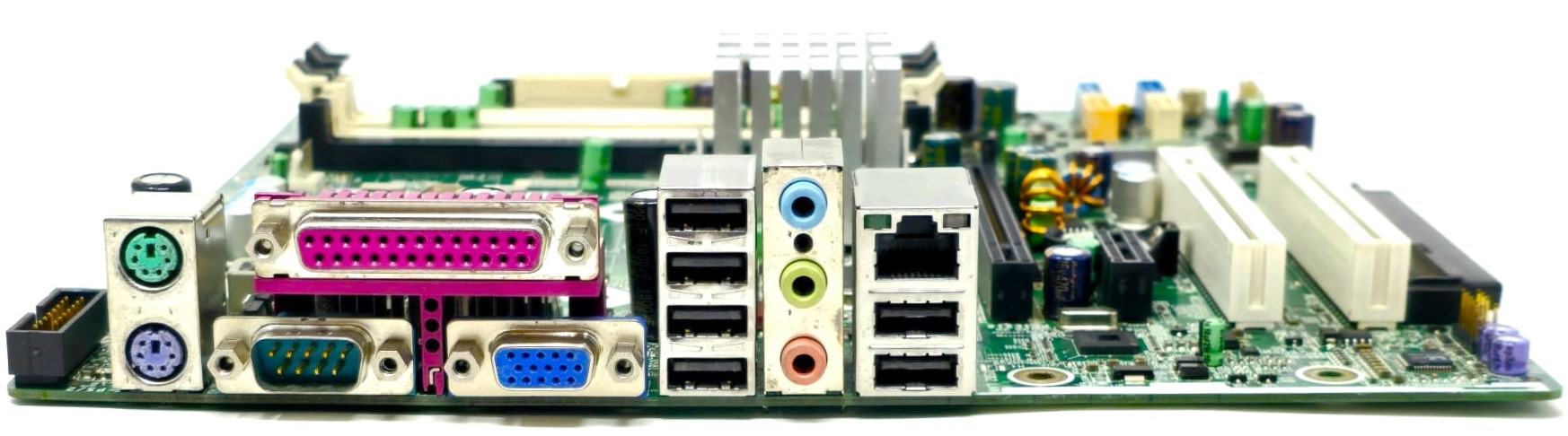

Onboard Features

• Integrated 10/100 Mbps Ethernet controller
• Integrated audio controller
• 4 x USB 2.0 ports
• 1 x Parallel port
• 1 x Serial port
• PS/2 keyboard and mouse ports

Additional Information

• Integrated VGA graphics (Intel GMA 3100)
• Supports Windows XP, Windows Vista, and Windows 7
