323091-001 Motherboard - ATX System Board for HP Compaq Evo D530 / D330 Desktop PC
323091-001 motherboard is an ATX-form factor board specifically engineered for HP Compaq Evo D530 and D330 desktop PCs. Designed to deliver reliable and stable performance, this motherboard supports Intel Pentium 4 processors, DDR memory, and includes integrated graphics and comprehensive connectivity options.
Quick Overview
- Part Number: 323091-001
- Form Factor: ATX
- Processor Socket: Socket PGA-478
- Chipset: Intel 865G
- Memory Capacity: Up to 4 GB DDR SDRAM (4 slots)
- Graphics: Integrated Intel Extreme Graphics 2
- Expansion Slots: 1 x AGP 4X, 3 x PCI
Category | Specification |
Supported CPUs |
Intel Pentium 4 |
Memory Type |
DDR SDRAM, Non-ECC |
Maximum Memory |
4 GB (4 x DIMMs) |
Storage Interfaces |
2 x SATA, 1 x Ultra ATA/100 (ATA-6) |
LAN |
Integrated Intel PRO/100 VE Network Connection |
Audio |
Integrated AC'97 Audio |
BIOS |
HP Flash ROM BIOS |
Power Requirement |
Standard 20-pin ATX Power Connector |

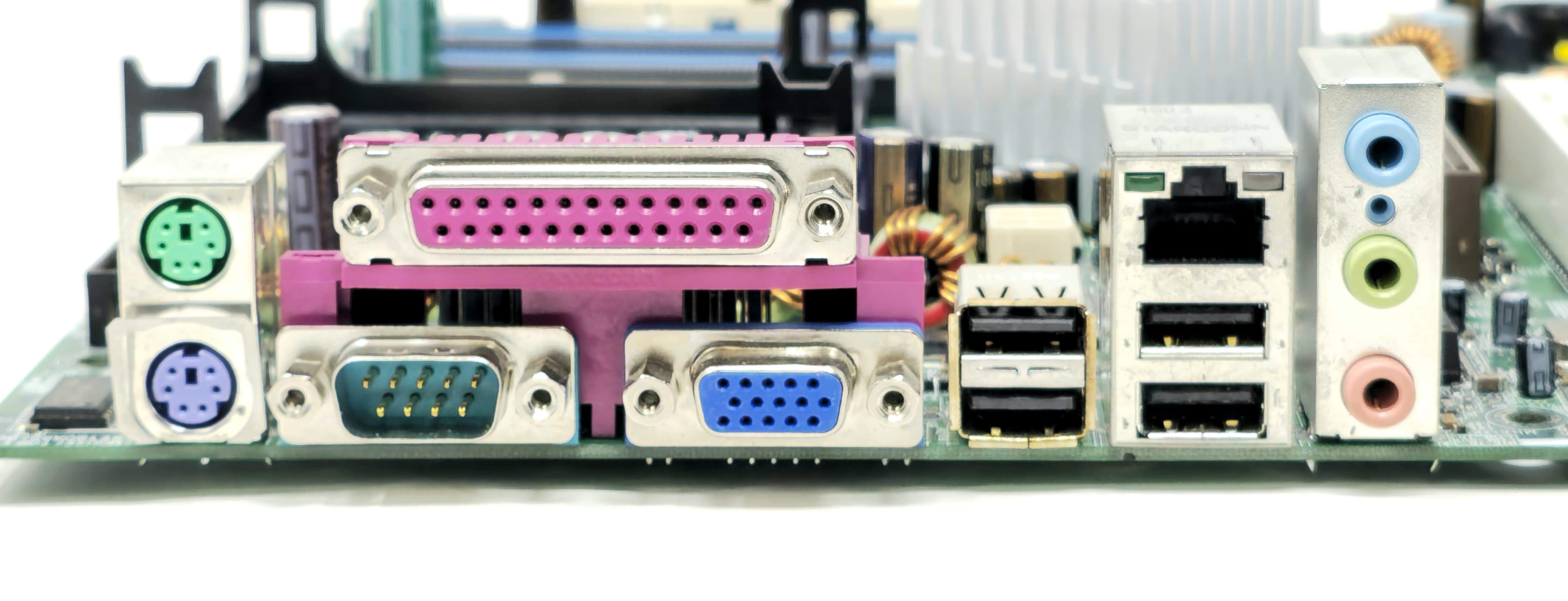

Rear I/O Ports
- 6 x USB 2.0 ports
- 1 x VGA port
- 1 x Parallel port
- 1 x Serial port
- 1 x RJ-45 Ethernet port
- 2 x PS/2 ports (keyboard and mouse)
- Audio connectors: Line-in, Line-out, Mic-in
Internal Connections
- 2 x SATA Interfaces
- 1 x Ultra ATA/100 (ATA-6)
- Front USB and audio headers
- CPU and Chassis fan connectors
- Front panel power and LED headers
Compatible Systems
- HP Compaq Evo D530 Desktop PC
- HP Compaq Evo D330 Desktop PC
Please confirm compatibility with your device manufacturer, considering BIOS version and chassis specifications.
Includes CPU Medics Standard 30-Day Warranty - Additional Warranty Options Are Available On Item Page.
