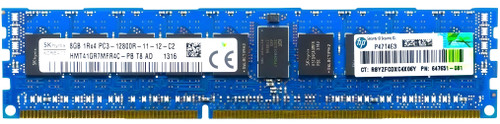

This high-performance 8GB ECC Registered DIMM is designed for enterprise-class servers requiring reliable and high-density memory. With a single-rank x4 configuration, PC3-12800R speed, and support for error correction, it's ideal for demanding data center, virtualization, and database applications.
| Specification | Details |
|---|---|
| Capacity | 8GB |
| Memory Type | DDR3 |
| Speed | 1600 MT/s (PC3-12800R) |
| Rank | 1Rx4 |
| Form Factor | RDIMM (ECC Registered DIMM) |
| Pins | 240-Pin |
| Voltage | 1.5V (some support 1.35V PC3L) |
| ECC | Yes |
| Buffered | Yes (Registered) |
| Application | Servers / Workstations |
| Feature Set | Single Rank, ECC, JEDEC-compliant, RoHS |
✔ Fully compatible and interchangeable part numbers across Micron, Samsung, Hynix, Nanya, HP, and EMC:
Micron:
MT18JSF1G72PZ-1G6E1HF, MT18JSF1G72PZ-1G6E1HG, MT18JSF1G72PZ-1G6E1FE, MT18JSF1G72PZ-1G6D1FF, MT18JSF1G72PZ-1G6D1FE, MT18JSF1G72PZ-1G6E1HE, MT18JSF1G72PZ-1G6E1FG, MT18JSF1G72PZ-1G6D1HE
Samsung:
M393B1G70BH0-CK0Q8, M393B1G70QH0-CK0Q9
SK Hynix:
HMT41GR7AFR4C-PB, HMT41GR7MFR4C-PB
Nanya:
NT8GC72B4PB2NL-DI
HP Spare/Option Numbers:
647651-081, 647651-181, 647879-B21, 647899-B21, 664691-001, 687462-001, 733020-581
EMC:
100-564-325-00
Please note that the following list is not exhaustive. Compatibility depends on the system BIOS version and motherboard configuration. It is essential to verify compatibility with the server manufacturer.
✔ Dell PowerEdge Servers:
R320, R420, R520, R620, R720, R720xd, R820, T320, T420, T620, M620, M820, C6220, C8220
✔ HP ProLiant Gen8 / Gen9 Servers:
DL360p Gen8, DL380p Gen8, DL160 Gen8, DL180 Gen8, DL385p Gen8, DL360e Gen8, DL380e Gen8, DL580 Gen8, ML350p Gen8, ML310e Gen8, ML110 Gen9, DL360 Gen9, DL380 Gen9, DL180 Gen9, ML350 Gen9
✔ Lenovo ThinkServer / System x / ThinkSystem:
TD340, RD440, RD640, TS140, TS440, SR530 (with DDR3 support), x3550 M4, x3650 M4, x3850 X6, x3950 X6
✔ Cisco UCS B-Series / C-Series:
C220 M3, C240 M3, B200 M3, B420 M3
✔ Supermicro Servers:
X9DRi-LN4F+, X9DR3-LN4F+, X9SRL-F, X9SCM-F, X9SCL-F, X9DRD-iF, X9DRW-iF and other X9 series with DDR3 RDIMM support
✔ IBM System x:
x3250 M4, x3550 M4, x3650 M4
✔ EMC / DELL EMC Storage Appliances:
VNX, VNXe, Unity systems using DDR3 ECC RDIMMs
Whether you're upgrading a few servers or outfitting an entire data center, we maintain substantial inventory of these 8GB DDR3-1600 1Rx4 ECC RDIMMs. We welcome bulk and volume orders and are ready to ship same-day for most requests.
