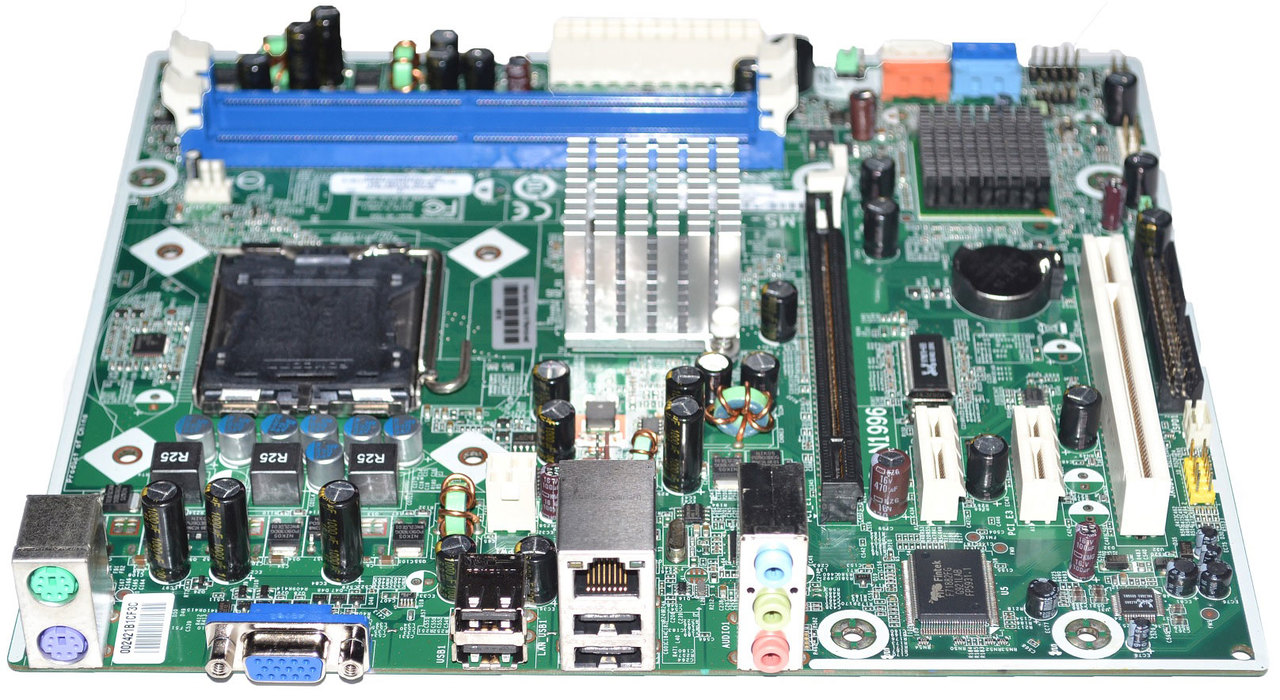

HP MS-7525 - MS-7525 Boston-GL6 Motherboard / System Board / Mainboard
Manufacturer's motherboard name: MSI MS-7525
HP/Compaq name: Boston-GL6
Compatible CPU Processors
- Core 2 Duo E7xxx (Wolfdale-M)
- Core 2 Duo E4x00 (Conroe)
- Pentium E2xxx series (Conroe)
- Celeron Dual Core E1xx0 series (Conroe)
- Celeron 4xx series (Conroe)
Compatible Memory
- PC2-5300 (667 MHz)
- PC2-6400 (800 MHz)
- Supports 2GB DDR2 DIMMs
- Supports up to 4 GB* on 32 bit PCs
I/O Ports
- (1) PS/2 mouse (green)
- (1) Video Graphics Adapter
- (1) RJ-45 Network (LAN)
- (1) Audio: Line In (light blue)
- (1) Audio: Line Out (lime)
- (1) Audio: Microphone (pink)
- (1) PS/2 keyboard (purple)
- (4) USB 2.0
