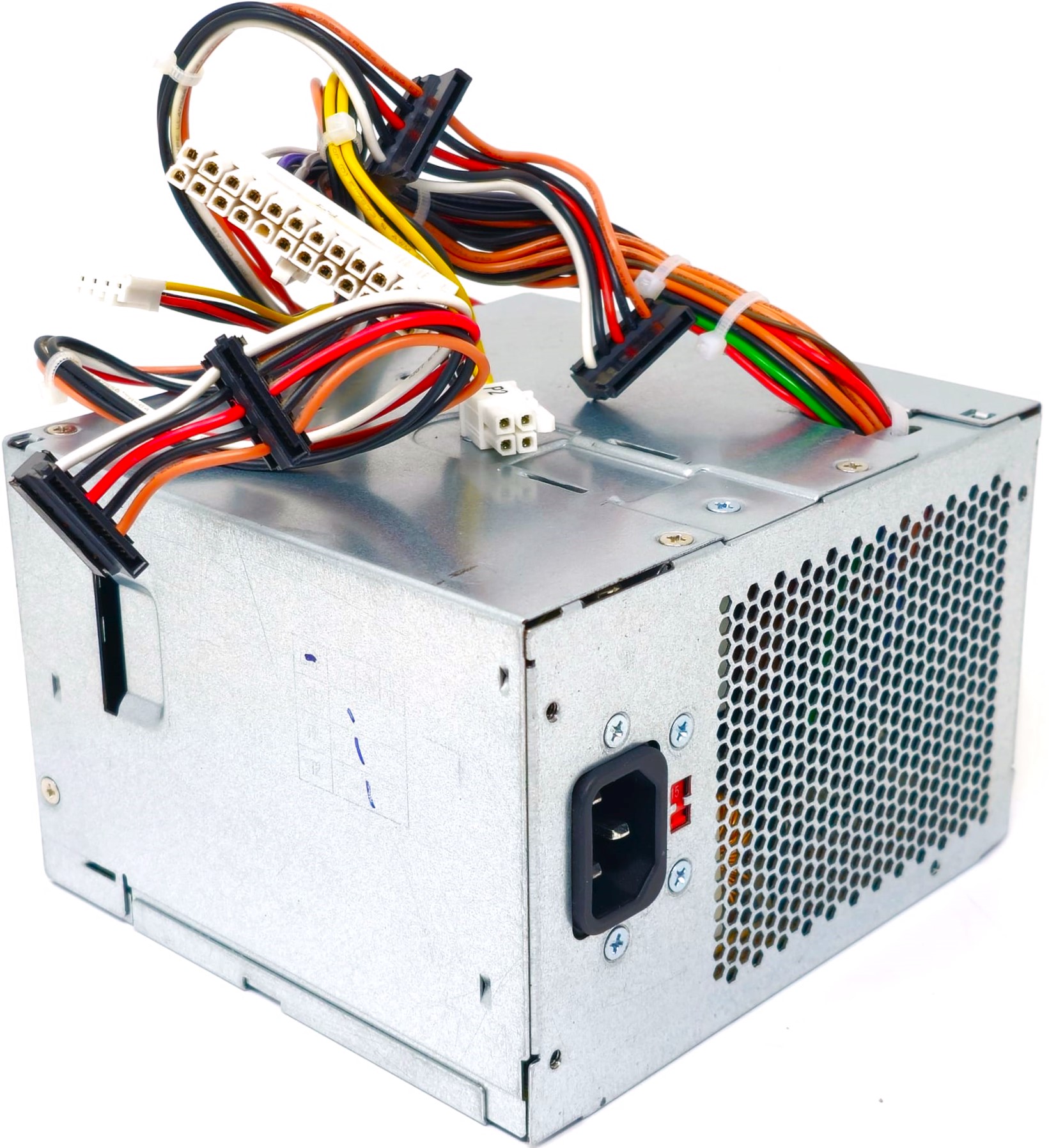

305W Power Supply for Dimension E310 E510 E520 E521 OptiPlex 755, 760, 780, 960
✔️ Genuine Dell Power Supply!
✔️ Grade A, Cleaned, Fully Tested!
MAX. OUTPUT POWER: 305W
AC INPUT
100-120V~ /9.0A 50/60Hz
200-240V~ /4.5A
DC OUTPUT
+5V ==/ 22.0A, -12V ==/ 1.0A,
+12VA ==/ 18.0A, +3.3V ==/17.0A,
+12VB ==/ 18.0A, +5VFP ==/ 4.0A,
Dimensions
150mm x 98mm x 140mm
Connectors
(1) 24-Pin ATX Connector (P1 7")
(1) 12V ATX Connector (P2 8")
(1) Floppy Connector (P7 5.5")
(4) SATA Connectors (P3 16") (P5 17.5") On The Same Cable (P8 8") (P9 11") On The Same Cable
Compatible Models (not limited to)
Dell Dimension E310
Dell Dimension E510
Dell Dimension E520
Dell Dimension E521
Dell OptiPlex 320 Mini Tower (MT)
Dell OptiPlex 330 Mini Tower (MT)
Dell OptiPlex 580 Mini Tower (MT)
Dell OptiPlex 740 Mini Tower (MT)
Dell OptiPlex 745 Mini Tower (MT)
Dell OptiPlex 755 Mini Tower (MT)
Dell OptiPlex 760 Mini Tower (MT)
Dell OptiPlex 780 Mini Tower (MT)
Dell OptiPlex 960 Mini Tower (MT)
