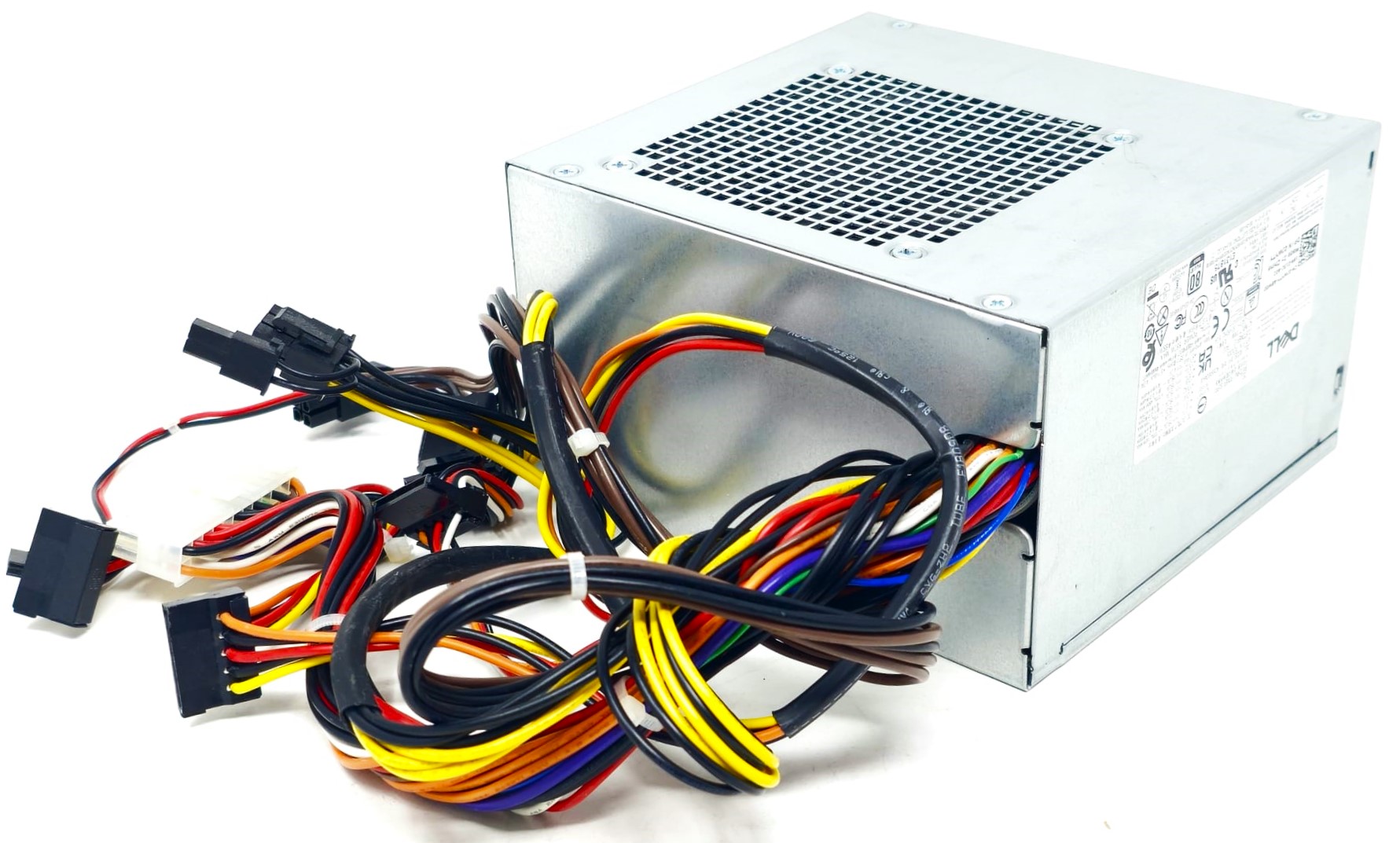

550W Power Supply for Dell Alienware Aurora R10 R11 R12 Precision 3630 3640
Max Power: 550W
Certification: 80 Plus Gold
AC INPUT
100-240V~ , 50/60Hz, 8.0A
DC OUTPUT
+ 3.3V ==15.0A
+ 5.1V ==20.0A
+12VA1 ==18.0A
+12VA2 ==18.0A
+12VB ==16.0A
+12VC1 ==18.0A
+12VC2 ==18.0A
+5.1Vaux ==4.0A
Dimensions
150mm x 87mm x 140mm
Connectors
(1) 24-Pin Connector (P1) 9.5")
(4) SATA Connectors (P5 18" & P6 24.5") On Same Cable (P9 6.5" & P3 9.5") On Same Cable As Mini Sata
(1) Mini SATA Connector (P4 16")
(2) 6+2 Pin Connector (P7 14") (P8 14")
(2) +12V 4-Pin Power Connector (P2A 21") (P2B 21")
Compatible Models
Alienware Aurora R10
Alienware Aurora R11
Alienware Aurora R12
Dell Precision 3630
Dell Precision 3640
