L460EBM-00 - 460W Power Supply for 7070/7060/5060 G5-5090 XPS 8940

460W Power Supply for Dell 7070 7060 5060 G5 5090 XPS 8940

MAX. OUTPUT POWER: 460W

AC INPUT
100-240V~/7.0A 50/60Hz

DC OUTPUT
+12VA2DC ==/18A MAX
+12VA1DC ==/18A MAX
+12VC ==/18A MAX
+12VBC ==/18A MAX
(+12VA1DC)+(12VA2DC) ==/18A MAX

Dimensions
82mm x 62mm x 220mm

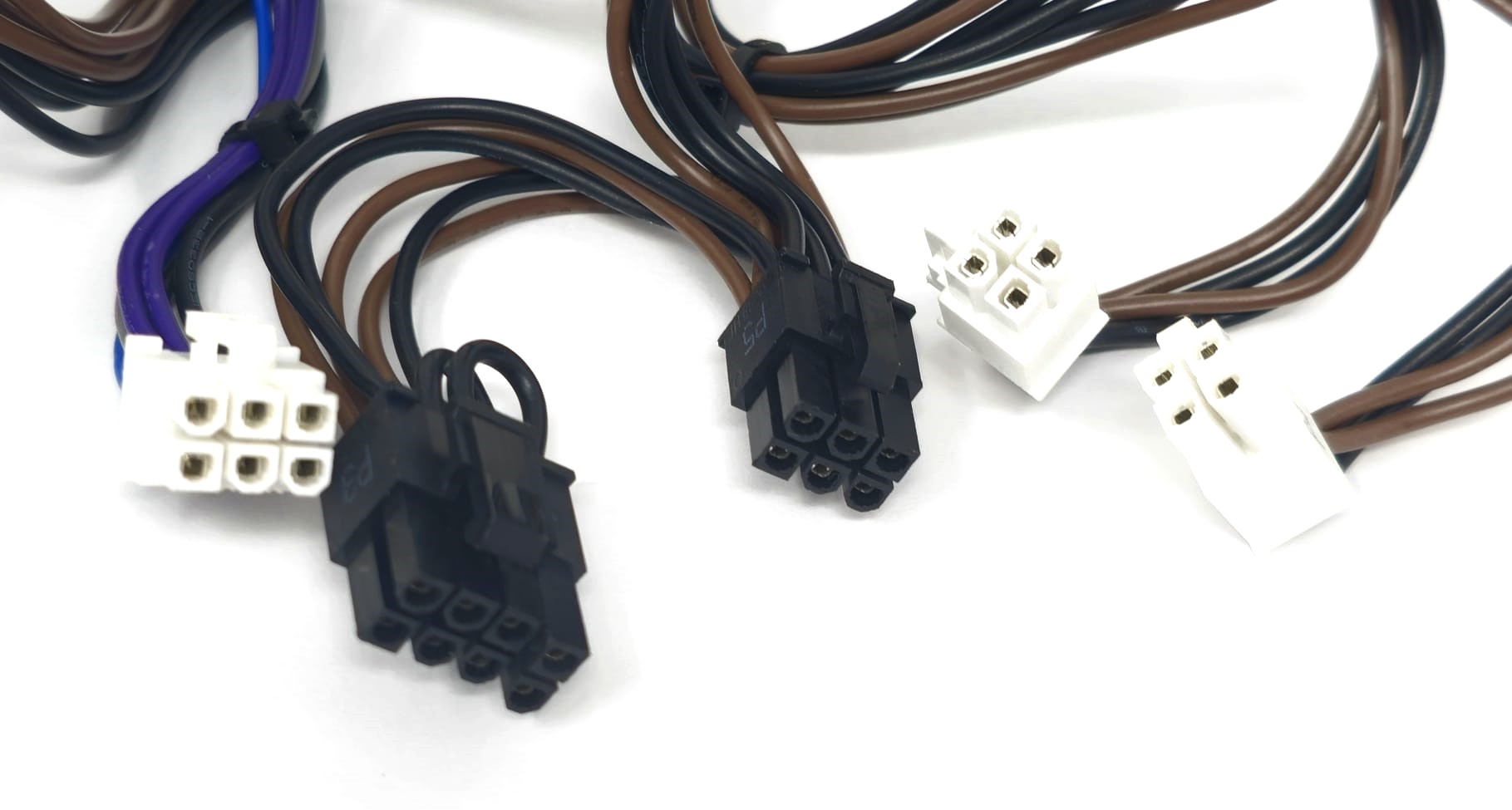

Connectors
(1) 6-Pin Connector (P1) 9.5")
(1) 6-Pin Connector (P5) (11.5") On Same Cable As P3
(1) 6+2 Pin Connector (P3) (15") On Same Cable As P5
(2) +12V 4-Pin Power Connector (P2 22") (P4 22")

Compatible Models (not limited to)
Dell OptiPlex 7070
Dell OptiPlex 7060
Dell OptiPlex 5060
Dell OptiPlex 5090
XPS 8940
