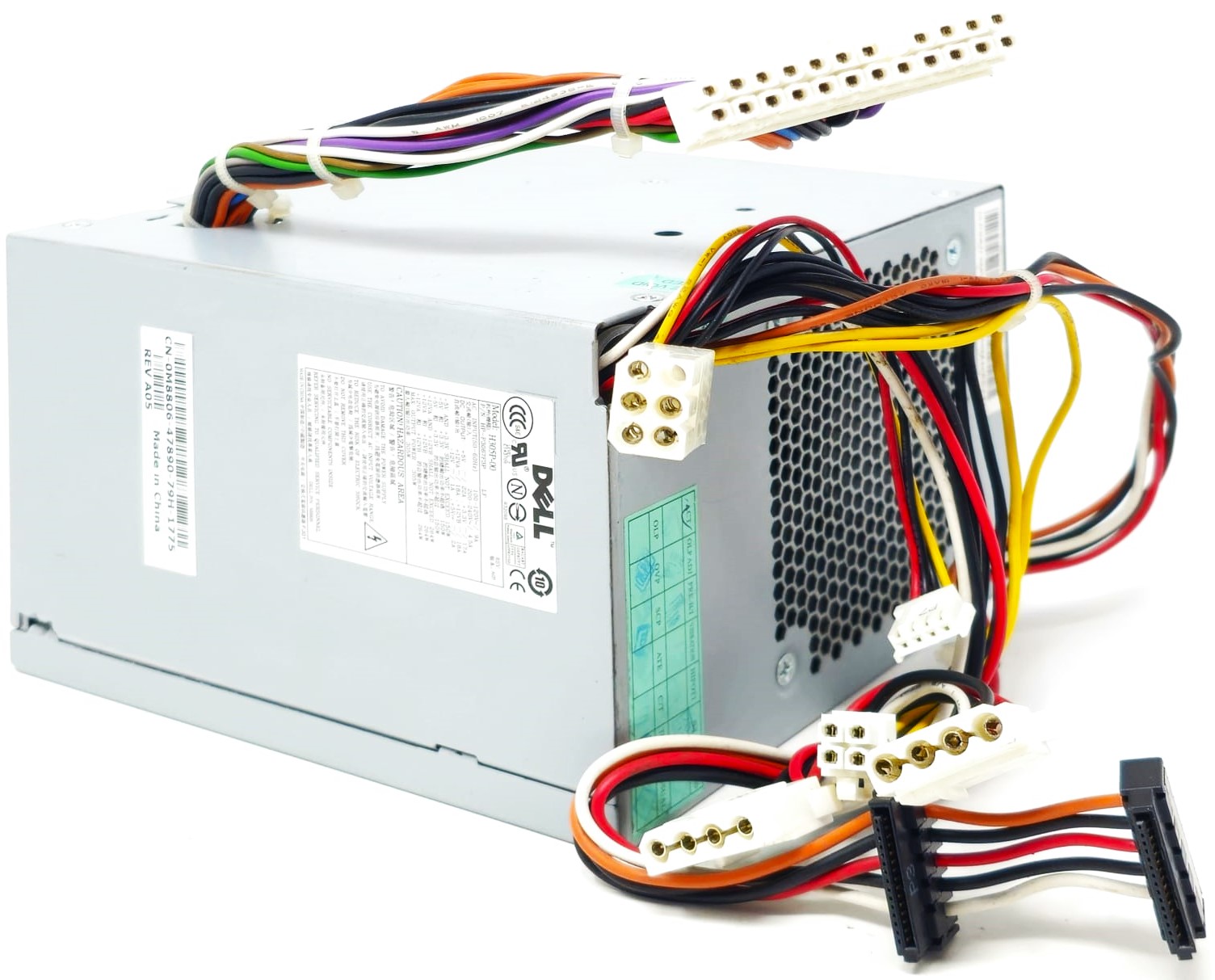

MAX. OUTPUT POWER: 305W
AC INPUT
100-120V~/9A (50-60Hz)
200-240V~/4.5A
DC OUTPUT
+5V =/ 22A
+3.3V =/ 17A
+12VA =/ 18A
+12VB =/ 18A
-12V =/ 1A
+5VFP =/ 2A
Dimensions
140mm x 98mm x 150mm
Connectors
(1) 24-Pin ATX Connector (P1) (7")
(1) +12V 4-Pin Power Connector (P2) (8.5")
(1) 6-Pin Dell Proprietery Connector (P4) (1.5")
(1) Floppy Drive (FDD) Connector (P7) (5.5")
(2) SATA Connectors (P3 16.5") (P5 18") On Same Cable
(2) IDE Connectors (P8 7") (P9 10") On Same Cable
Compatible Models (Partial List / Not Limited To)
Dell Dimension 3100
Dell Dimension 5100
Dell Dimension 5150
Dell Dimension E310
Dell Dimension E510
Dell Dimension E520
Dell Dimension E521
Dell OptiPlex GX320
Dell OptiPlex GX620
Dell PowerEdge SC430
Dell PowerEdge SC440
