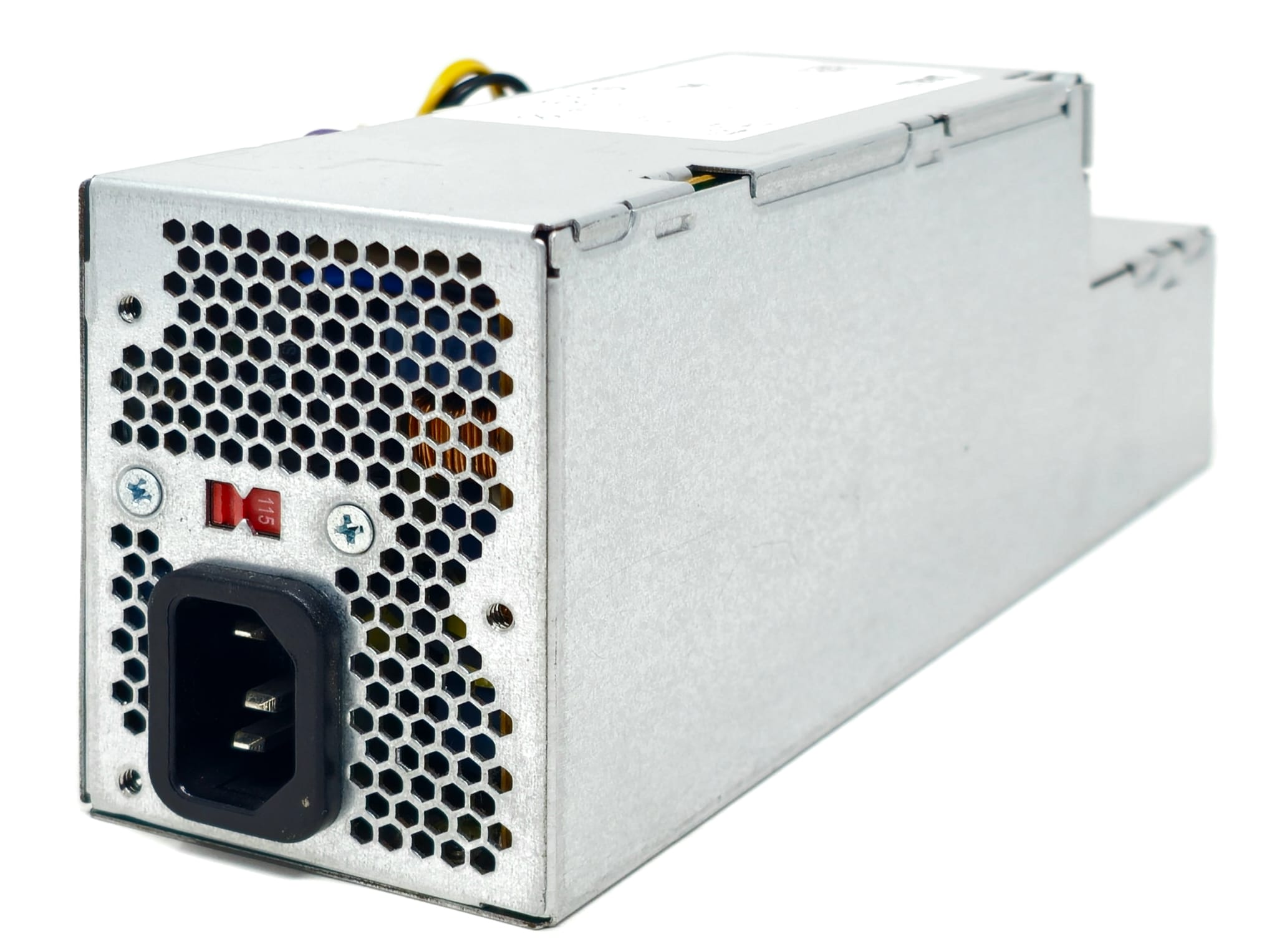

MAX. OUTPUT POWER: 275W
AC INPUT
100-120V~/6A (47-63Hz)
200-240V~/3A
DC OUTPUT
+12V = /17A,
+5V = /18A,
+3.3V = /5A,
-12V =/0.5A,
+5VSB =/4A,
Dimensions
62mm x 82mm x 210mm
Connectors
(1) 24-Pin ATX Power Connector (P1 3")
(1) 4 Pin +12V Power Connector (P2 15.5")
(1) SATA Power Connector (P3 8")
(1) Mini SATA Connector (P6 7.5")
(1) 4-pin Optical Power Connector (P5 7.5")
Compatible Models (not limited to)
Dell OptiPlex 740
Dell OptiPlex 745
Dell OptiPlex 755
Dell OptiPlex GX520
Dell OptiPlex GX620
Dell Dimension 5100c
Dell Dimension 5150c
Dell Dimension 9200C
Dell XPS 210
NOTE: This model comes in different revisions; with and without the "mini SATA" connector (P6). If you need the model without the "mini SATA" power connector, please see RW739.
