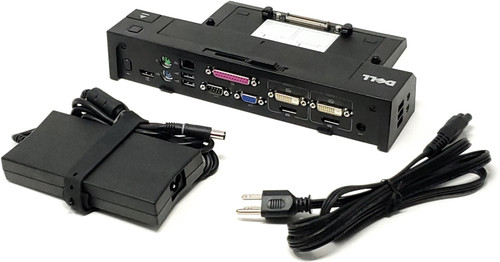

E-Port Plus PR02X Docking Station / Port Replicator
Works with AC Adapter JU012, DA130PE1-00, ADP-130DBB, PA-4E (NOT INCLUDED). For
complete kit, see PR02X + 130W AC Adapter
Product Support Pages from Dell
PR02X Overview
User's Guide
Setup Diagram
Guide to Dell Docking Stations
E-Port Plus and 4K Displays
Drivers & Downloads
Ports / Connections
(5) USB Ports
(2) PS/2 Ports (Keyboard & Mouse)
(2) DVI - 24-pin Video Out
(2) Display Port Video Out
(1) VGA Video Out
(1) eSATA/USB Port
(1) Network / RJ-45 / Ethernet Port
(1) Serial - RS-232 - 9 pin D-Sub (DB-9)
(1) Parallel - 25 pin D-Sub (DB-25)
(1) Microphone & Headset / Speakers Audio Out
Compatible Models
Dell Latitude: E4200, E4210, E4300, E4310
Dell Latitude: E5400, E5410, E5420, E5430, E5500, E5510, E5520, E5530
Dell Latitude: E6220, E6230, E6320, E6330, E6400, E6400 ATG, E6410, E6410 ATG, E6420, E6430, E6500, E6510, E6510 ATG, E6520, E6530, E6540, ST, XT3
Dell Precision: M2400, M4400, M4500, M4600, M4700, M6400, M6500, M6600, M6700
